SETTINGS SCREEN

Tap [SETTING] on the left of the screen to access the settings options.

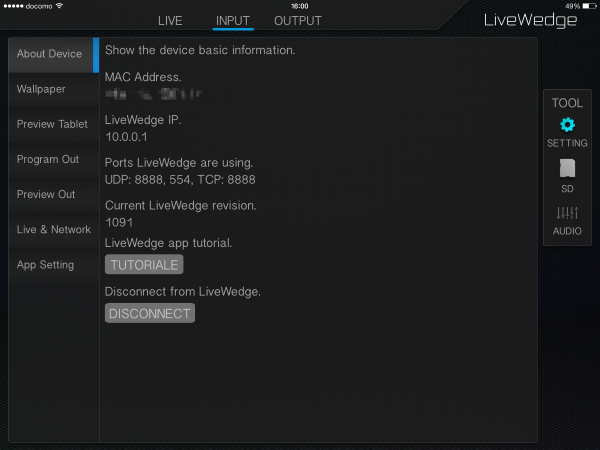

About Device

setting01

  • MAC Address: MAC address for the LiveWedge unit
  • LiveWedge IP: IP address assigned to the LiveWedge
  • Ports LiveWedge are using : The ports the LiveWedge is currently using are displayed
  • TUTORIAL : To start the LiveWedge app tutorial, tap [TUTORIAL]
  • DISCONNECT : Disconnect the LiveWedge app from a connected LiveWedge

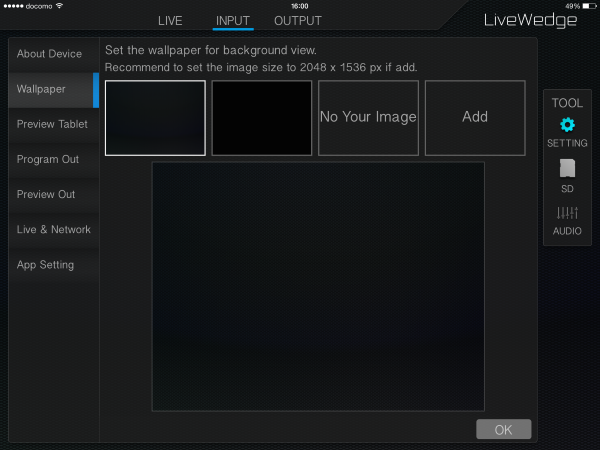

Wallpaper

You can set a saved image on your iPad as a wallpaper in the LiveWedge App. Recommended wallpaper sizes are –

  • Retina display iPad – 2048×1536 pixels
  • Non-Retina display iPad – 1024×768 pixels

setting02

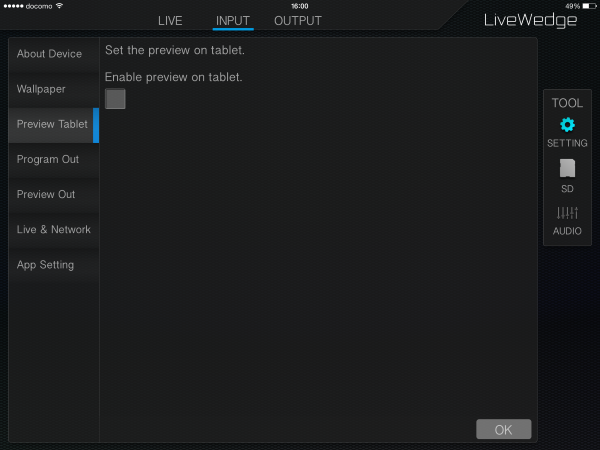

Preview tablet

Switch on or off the tablet preview function.

setting03

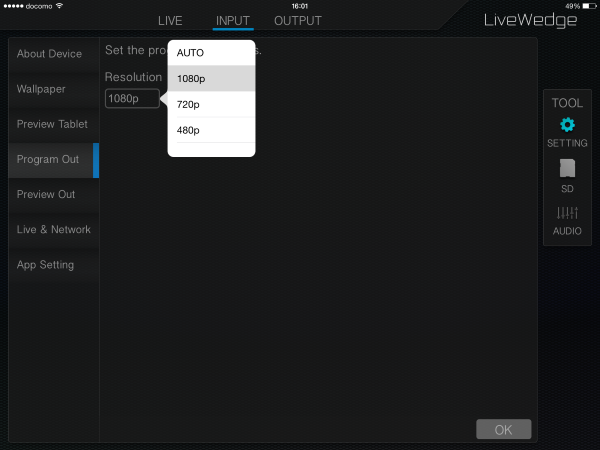

Program Out

Fix the resolution of Program out. You can select [AUTO] [1080p] [720p] or [480p].

setting04

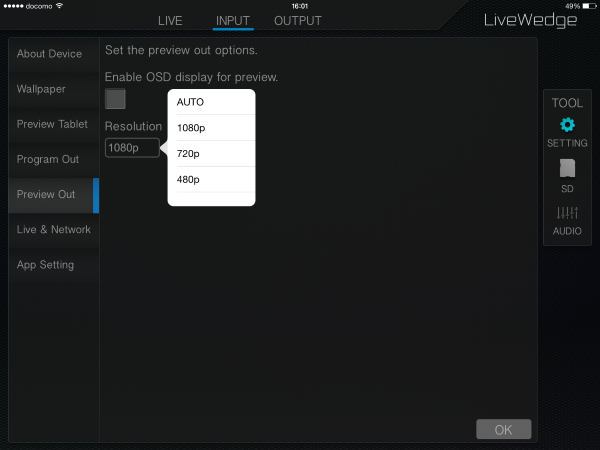

Preview Out

Fix the resolution of Preview out. You can select [AUTO] [1080p] [720p] or [480p].

setting05

Enable OSD display for preview

Displays OSD (On Screen Display) information in preview output. OSD options are –

HDMI Inserted

  • Input number (1 to 4)
  • Resolution – E.G. if resolution is 1920×1080 interlace, RESOLUTION: 1920x1080i is displayed
  • Frame rate – E.G. if frame rate is 60, FRAME RATE: 60 is displayed
  • Audio embed – Embedded : AUDIO EMBEDDED: YES Not embedded : AUDIO EMBEDDED: NO

HDMI not inserted

  • Input number (1 to 4)
  • Displays NONE on input

Resolution

fix resolution of preview out. You can select [AUTO][1080p][720p][480p].

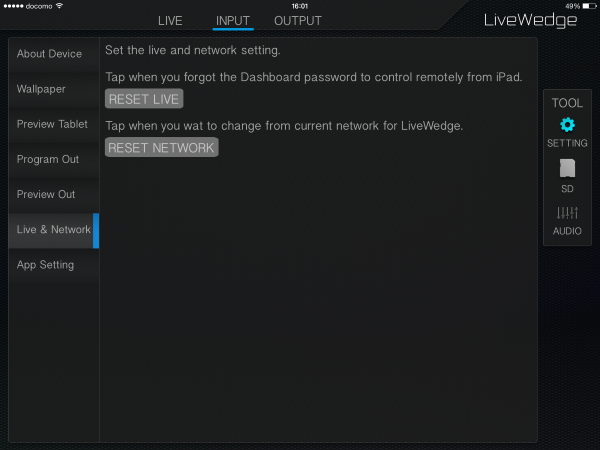

Live & Network

setting06

  • RESET LIVE: Reset the live streaming settings.
  • REST NETWORK: Reset the network settings.

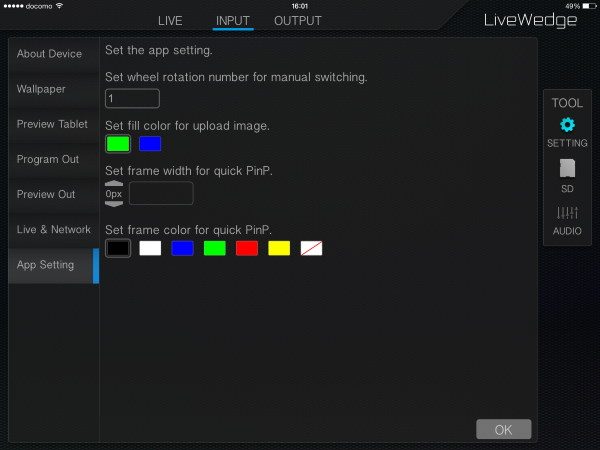

App Setting

Edit the number of spin wheel rotations for manual mix and manual wipe, set a fill colour for images uploaded as wallpaper and set the frame colour and width for quick PinP.

setting07
