6-5. Other Broadcasting Services Setup

Streaming Settings

Tap the [SETTINGS] button on the top right of the Dashboard main screen and you will see the [Streaming settings] menu.

ub300_cap_en_setting01-1

Other Broadcasting Services Setup

  1. Select [Other broadcasting services] and tap [OK]. If you are setting up YouTube Live Stream Now continue to step 2, if you are setting up your own RTMP service skip to step 3.
    ub300_cap_en_othersetting01
  2. To get YouTube [Stream now] settings, login to YouTube, click your account pictogram on the top right of the screen and click the [Creator Studio] button.
    • ubx_en_cap_streamnowsetting01
    • Click the [LIVE STREAMING] link from the left side menu
      ubx_en_cap_streamnowsetting02
    • You will see the RTMP server address and stream (name/key) in the [ENCODER SETUP] section and click [Reveal] to copy the stream(name/key) value.
      ubx_en_cap_streamnowsetting03
      ubx_en_cap_streamnowsetting04

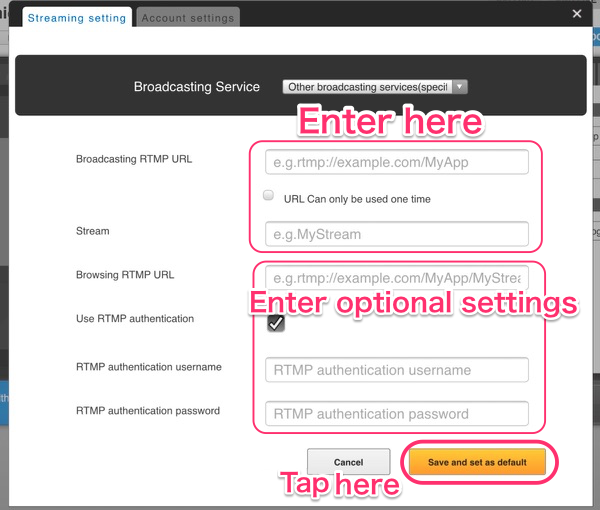

  3. Enter your RTMP server information (URL, stream) and optional settings (e.g. RTMP authentication information), then tap [Save and set as default].
    ub300_cap_en_othersetting02
  4. Close the pop-up window
    ub300_cap_en_othersetting03
  5. Tap [START LIVE].
    ub300_cap_en_othersetting04
